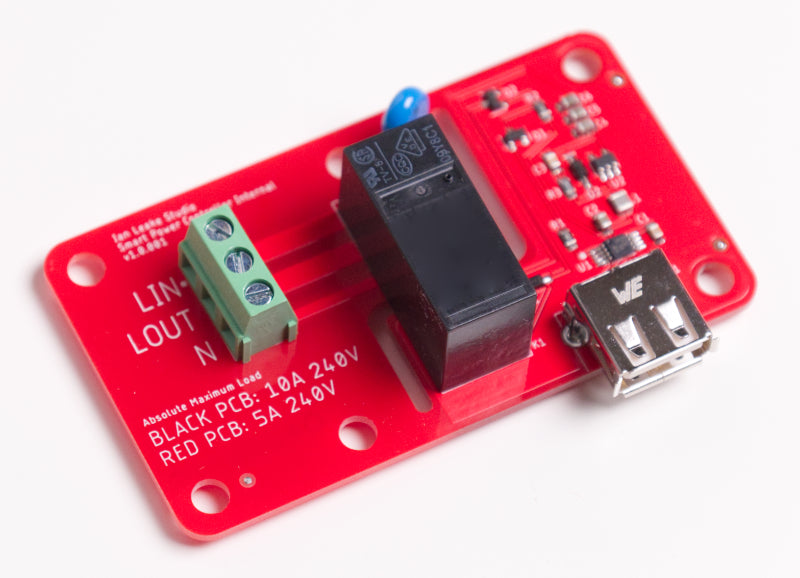

Smart Power Controller (Internal)

The smart power controller is connected between the mains supply and the light source. It switches on the supply to the light source when the exposure is started, and switches it off again when the exposure is completed (or paused).

WARNING: This version is a “bare bones” configuration for mounting inside a light unit. It should only be installed by a competent electrician because mis-installation exposes you to the risk of mains electric shock.

Two versions are available:

• Red – rated for a maximum load of 5A at 110/220/240Vac
• Black – rated for a maximum load 10A at 110/220/240Vac

What’s in the box:

• Power Controller
• Control Cable (connects to the light integrator)

This device requires an LC5, LC4 or LC3 light integrator. If using an LC3 then it must be upgraded to the LC3+ firmware.
